「親要素の任意プロパティ」にアクセスする手段として、`inherit()` の仕様が CSS Values and Units Module Level 5 で策定されています。これにより、Custom Properties を経由せず、親要素のプロパティを子要素から直接自己参照でき、長年望まれてきた非常に多くのユースケースが一挙に解決されることが期待されています。
Table of Contents
Table of Contents
はじめに
var()
は Custom Properties を参照する関数ですが、CSS に「親要素の任意プロパティ」にアクセスする手段は存在しません。
inherit()
は、CSS の Custom Properties を経由せず、親要素のプロパティを子要素から直接自己参照できるようにすることで、ネストの深さに応じたスタイリングや、親に依存した動的なスタイリング、利用側の環境に適応したアダプティブな UI コンポーネントの実装が可能になることが期待される提案です。
このプロポーザル本体や関連するプロポーザルは Original Post で大きな注目を集め、現在仕様策定中の CSS Values and Units Module Level 5 に盛り込まれる予定となっています。
本エントリでは、var()
の持つ仕様/実装上の制限から、inherit()
が提案された背景、inherit()
によって解決される様々なユースケースを紹介し、ネストや動的なスタイルの実現がどのように容易になっていくのかを述べています。
Pain points
CSS の Custom Properties は、var()
を用いて親要素から子要素へ値を継承することができますが、var()
には仕様上の制限があります。
Background
Custom Properties は var()
を用いて自己を参照することができません。
This, finally, is a cyclic substitution context, since it matches the substitution context from the first substitution, causing the substitution to just produce the guaranteed-invalid value. This percolates back up the nested invocations, eventually resulting in
--one
becoming invalid at computed-value time. ー CSS Values and Units Module Level 5
それゆえ、以下のようなvar()
を介した Custom Properties の自己参照を行うコードは、ブラウザにおけるスタイル計算のタイミングで無効と判定されます。
/* invalid */
.element {
--depth: calc(var(--depth) + 1);
}
もし、自己参照することができれば、親の値を基準とした計算(ネストの深さを追跡したり、親の値を継承した count 処理したり)ができ、その値をスタイルに用いることできるはずです。
しかし、var()
では自己参照ができないため、例えば、ネストの深さに応じたスタイリングをするには、以下のような心温まる手作業で Custom Properties を要素ごとに指定するに等しい手法が妥当でした。
<div class="nested-item" style="--depth: 1">Level 1
<div class="nested-item" style="--depth: 2">Level 2
<div class="nested-item" style="--depth: 3">Level 3
<div class="nested-item" style="--depth: 4">Level 4</div>
</div>
</div>
</div>
<style>
.nested-item {
padding-left: calc(var(--depth, 0) * 1em);
background: hsl(calc(var(--depth, 0) * 60), 50%, 90%);
}
</style>
単純に考えると、var()
のもつ自己参照の制限を緩め、任意のプロパティを var()
で参照できるように仕様を拡張すれば良いように思えます。
しかし、var()
は、 「任意の親要素」 から定義された Custom Properties の参照が可能であり、inherit()
では 「自己参照を可能にする」 可能性を踏まえると、var()
を拡張して 「任意の親要素から」 「自己参照を可能にする」 場合、参照元の検出にかかる計算コストが増大する可能性があります。
詳細: #limitation-or-implementation-details
また、var()
の持つ明確な制限として、「親要素のプロパティに直接アクセスができない」という問題があり、そもそもこれが inherit()
が提案された背景の白眉なところでした。
親要素の値を子要素で使用するには、明示的に Custom Properties という変数に格納したのち、親子共通で仕様する必要があります。 親子で共通のプロパティ値を持つには、Custom Propertiesという変数を必ず経由することが必須条件となり、参照したいものを直接参照したくなるのも不思議ではないでしょう。
.parent {
--parent-width: 200px;
width: var(--parent-width);
}
.child {
width: calc(var(--parent-width) * 0.5);
}
var()
で自己参照ができないことと、親のプロパティを直参照したいという条件を踏まえ、 inherit()
は「直近の親要素から」「自己参照が可能」な状態で「直接プロパティを参照できる」関数として検討されます。
Summary of pain points & requirements
問題を掘り下げると、具体的には以下のような項目が浮かび上がります。
- Self-Referencing: ネストの深さを追跡したり、値を継承した count 処理をしたい
- Dynamic Styling: 親のスタイルに基づいて子のスタイルを決定したい
- Value Bridging to 3rd Party UI Components: 3rd Party 製ライブラリやフレームワークから利用側のスタイル継承をして、利用側のスタイル状況に合わせたコンポーネントを作りたい
これらの要求を満たすための要件として、議論の過程で以下が明らかになりました。
- レイアウトエンジンにおける計算コストの観点から、自己参照しない実装になる仕様である必要
- 任意プロパティからの値取得である必要
- Custom Properties の参照をする必要もあるため、
var()
と同様のトークンレベルでの動作が必要 - フォールバック機能を提供する必要
✨ The Proposal: CSS inherit()
Function
エンジン側の計算コストを抑えつつ、任意のプロパティから値の参照を可能にするものとして提案されたのが、inherit()
です。
Defining and using inherit()
inherit()
は、指定された任意プロパティの親要素での計算値を取得し、それを現在の要素で使用できるようにします。
(Current Proposed Syntax:)
inherit(<(custom-)property-name>)
inherit(<(custom-)property-name>, <declaration-value>?)
.parent {
font-size: 16px;
background-color: #007acc;
}
.child {
/* 20% bigger than parent font size */
font-size: calc(inherit(font-size) * 1.2);
/* inherit parent background color */
color: inherit(background-color);
}
ここからは、inherit()
の利用例をいくつか紹介し、どのようなユースケースで有用かをいくつか列挙します。
Usecase 1: Self-Referencing Custom Properties
Track nest depth
inherit()
が自己参照可能なことを利用し、親の値を基準とした計算ができるようになると、ネストレベルの深度を自動的に追跡することができるようになります。
この手法により、HTMLの構造を変更することなく、CSSだけでネストレベルに応じた動的なスタイリングが可能になります。
<!-- HTML is super simple as it should be! -->
<div class="nested-item">
<div class="nested-item">
<div class="nested-item">
<div class="nested-item"></div>
</div>
</div>
</div>
<style>
* {
/* self reference to track depth */
--depth: calc(inherit(--depth, 0) + 1);
}
.nested-item {
/* calc padding based on depth */
padding-left: calc(var(--depth) * 1em);
/* calc background color hue based on depth */
background: hsl(calc(var(--depth) * 60), 50%, 90%);
/* display depth as a counter */
counter-reset: depth var(--depth);
}
</style>
Swapping Custom Properties
var()
では自己参照不可能なため困難な2つの変数の値のスワップも、inherit()
では可能です。
:root {
--primary-color: hsl(220, 70%, 50%);
--secondary-color: hsl(160, 60%, 45%);
}
.theme-swapped {
/* swap variables */
--primary-color: inherit(--secondary-color);
--secondary-color: inherit(--primary-color);
}
Usecase 2: Dynamic Styling
Responsive Borders
親要素の border-radius
に合わせて、子要素の border-radius
を自動調整すると、視覚的に整った Nested Border のデザインが実現できることは知られています。
特に、カードコンポーネントやモーダルダイアログ、アイコンなど、Nested Border を含む UI で特に有用なパターンとなり得るでしょう。
.card {
border-radius: 12px;
padding: 16px;
background: #f5f5f5;
}
.nested-card {
/* calculate border radius based on parent border radius,
so that it perfectly matches the parent's shape! */
border-radius: calc(inherit(border-radius) - inherit(padding));
padding: 12px;
background: white;
margin: 4px;
}

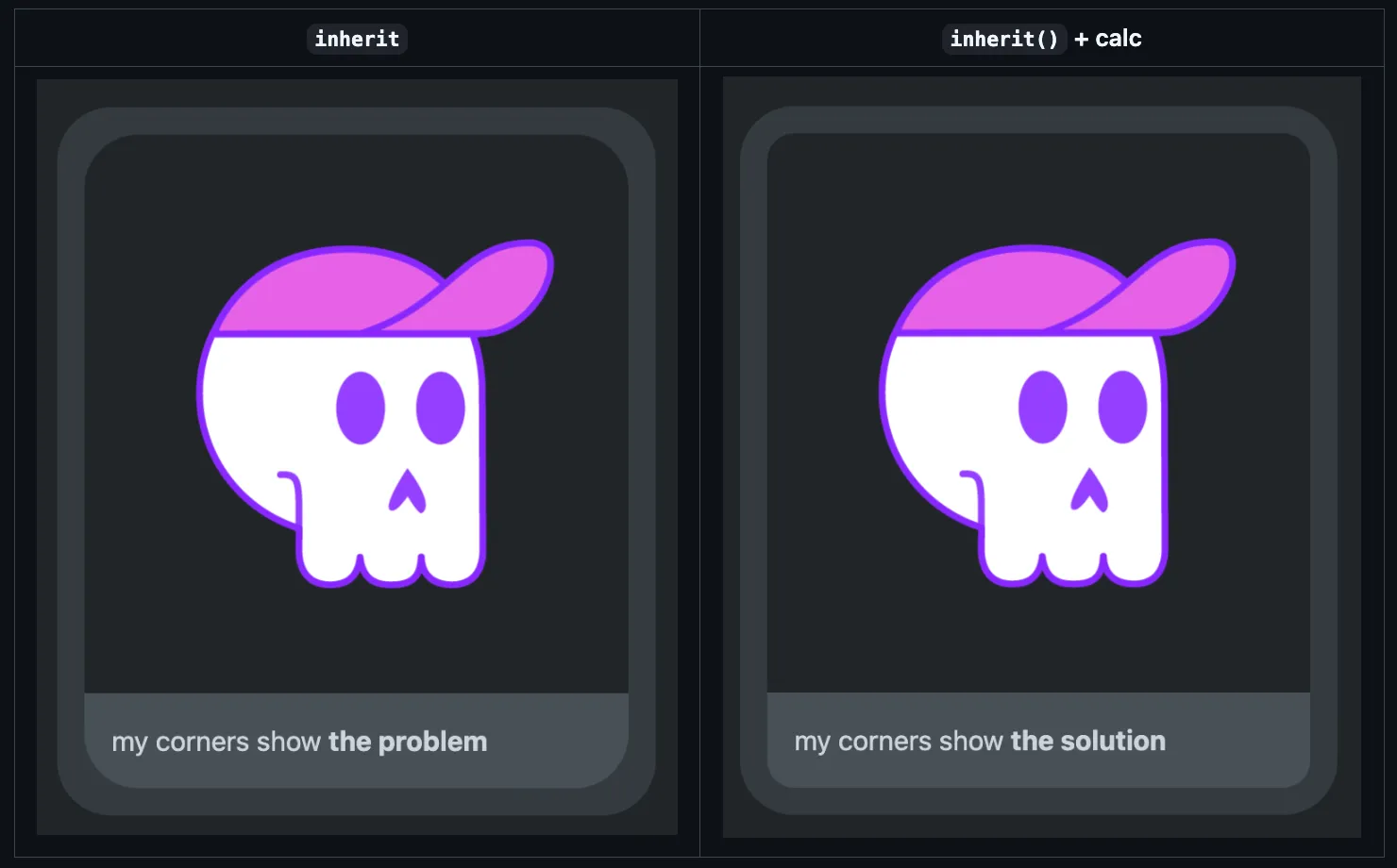

親のborder-radius と親和した radius
Swapping foreground and background colors
例えば、親要素の前景色と背景色を入れ替えて、反転したテーマを作成できます。
inherit()
を使うと、親要素の具体的な色を基準とした、ボタンのホバー状態やコントラスト切り替えに活用できます。
.theme-primary {
color: light-dark(#333, #fff);
background: light-dark(#fff, #333);
}
.theme-inverted {
/* color to be parent background color */
color: inherit(background-color);
/* background color to be parent color */
background-color: inherit(color);
}
Font Properties
親要素のフォントプロパティを基準とした、相対的なフォント値の調整も可能になります。
.base-text {
font-weight: 400;
font-size: 16px;
}
.emphasized {
/* 1.2 times bigger than parent font-weight but clamped from 600 to 900 */
font-weight: clamp(600, calc(inherit(font-weight) * 1.2), 900);
/* 1.125 times bigger than parent font-size */
font-size: calc(inherit(font-size) * 1.125);
}
異なる
font-size
のweightを一定にしたい
- [css-fonts-4] Percentages in font-weight for relative weights · Issue #2690 · w3c/csswg-drafts
- [css-fonts] font-weight: bolder and lighter are counter-intuitive · Issue #2764 · w3c/csswg-drafts
Value Bridging to 3rd Party UI Components
また、inherit()
を用いると、「利用側の環境に自動的に適応するコンポーネント」が作成できます。
例えば、利用側の親要素の background-color や border-radius を基準に、3rd Party の UI コンポーネントが自動的に適応するようなスタイルを実装できます。
e.g.2, 利用側のスタイルに応じた Card
.lib-card {
/* 親の背景色に基づいて自動でカードの色を決定 */
background: color-mix(
in srgb,
inherit(background-color) 95%,
light-dark(white, black) 5%
);
/* 親のborder-radiusと調和 */
border-radius: max(
calc(inherit(border-radius, 0px) * 0.8),
4px
);
/* 親のpadding基準で内部余白を設定 */
padding: max(inherit(padding, 16px), 12px);
}
e.g.2, 利用側のスタイルに応じた Tooltip
.lib-tooltip {
/* 親要素の背景色とコントラスト比を保ったカラーでツールチップを表示 */
background: contrast-color(inherit(background-color));
color: contrast-color(contrast-color(inherit(background-color)));
/* 親のz-indexより上に表示 */
z-index: calc(inherit(z-index, 0) + 1000);
}
Limitation or Implementation details
パフォーマンスとスタイル無効化の範囲を限定するため、inherit()
は 直接の親要素のみ にアクセス可能です。
多くのレイアウトエンジンでは、**スタイルの無効化(Style Invalidation)**が重要な最適化の手段となっており、 プロパティが変更された際、その影響を受ける要素のみを限定的に再計算することで、パフォーマンスを維持しています。
- 親→子のみの場合: Parent [color変更] → 直接の子要素のみ無効化
- 祖先アクセスありの場合: Ancestor [color変更] → 全子孫要素を探索・広範囲の無効化が必要
inherit()
が祖先にアクセスできてしまうと、親から子への単純な伝播と比べて計算量が大幅に増加するため、inherit()
が直接参照できるのは親要素のみに制限されています。
- Servo/StyleUpdateOnDOMChange - MozillaWiki
- CSS Style Invalidation in Blink
- Reduce the scope and complexity of style calculations
- How Blink invalidates styles when
:has()
in use? - Byungwoo’s Blog
とはいえ、祖先要素の値が必要な場合は、対症療法的な手段として、Custom Properties を変数として介して用いることができます。
.intermediate {
--grandparent-value: inherit(some-property);
}
.descendant {
some-property: var(--grandparent-value);
}
Other ideas explored
idea 1: Expand toggle()
in CSS Module Level 5
CSS Values and Units Module Level 5 には既に toggle()
が標準化されることになっており、これは値のサイクリックな切り替えを提供します。
em {
font-style: toggle(italic, normal);
}
しかし、toggle()
には以下のような制限があります。
attr()
やcalc()
との組み合わせができない- CSS 仕様でいうところの Rule 単位でのみ使用可能
toggle()
内で指定した値しか使えない
inherit()
はこれらの制限をつべきではなく、toggle からこれらの制限を緩めることも難しいということより、inherit()
が toggle()
の拡張となることはありませんでした。
idea 2: Mark with !inheritable
flag
プロパティに !inheritable
フラグを付けることで、親要素の値を子要素で参照できるようにする提案もありました。
しかし、この手法は、親要素にも構文の記述を強制するため、例えば 3rd Party ライブラリとして inherit()
を用いたコンポーネントを提供する際に運用が破綻する可能性があります。
/* 3rd Party UI Component */
.ex-button {
/* user's parent element's color will decide the component's colors */
color: inherited(background-color);
border: 1px solid inherited(background-color);
padding: 0.5em 1em;
}
<style>
/* User has to write !inheritance and this has to be well documented... */
.parent-container {
background-color: #007acc !inheritable; /* ← */
}
</style>
<div class="parent-container">
<button class="ex-button">3rd Party Button Component</button>
</div>
idea 3: Container Style Queries workaround
Roman Komarov が Container Style Queries を用いてinherit()
の挙動を一部再現した、ワークアラウンドも存在します。
<!-- Level1 is the case of @container not style(--is-alternate: ) -->
<!-- --depth: calc(var(--inherited, 0) + 1); /* 0 + 1 = 1 */
--inherit: var(--depth); /* --inherit = 1 */ -->
<div class="element">Level 1
<!-- Level2 is the case of @container style(--is-alternate: ) -->
<div class="element">Level 2</div>
</div>
<style>
* {
@container not style(--is-alternate: ) {
--is-alternate: ;
--inherited--even: var(--inherit);
--inherited: var(--inherited--odd);
}
@container style(--is-alternate: ) {
--is-alternate: initial;
--inherited--odd: var(--inherit);
--inherited: var(--inherited--even);
}
}
.element {
--depth: calc(var(--inherited, 0) + 1);
--inherit: var(--depth);
}
</style>
この手法は inherit()
の多くのユースケースをカバーしますが、Custom Properties の自己参照にしか対応しておらず、
Computed Values、つまりプロパティの値を直接参照することはできません。
実装の詳細は以下に詳しいです。
inherit()
は今後 Custom Properties の実装から進み、段階的にプロパティの参照に実装が進む予定となっています。
まだ Standard Position も出ておらず、実装の Intent があるわけでもありませんが、「プロパティ値の(自己)参照」が可能になることで、
長年望まれてきた非常に多くのユースケースが一挙に解決されるのではないでしょうか。
If you could use a function to refer to the value of any CSS property on the parent element (e.g. inherit(font-weight) would resolve to the parent font-weight) and you could use that in any property, what would you use it for?
— Dr Lea Verou (@LeaVerou) January 16, 2021
Real use cases please, not abstract theoretical ones.
- [css-borders-4] New
border-radius
value for perfectly matching nested radii · Issue #7707 · w3c/csswg-drafts - [css-color-5] Add
currentBackgroundColor
Variable · Issue #5292 · w3c/csswg-drafts - [css-fonts-4] Percentages in font-weight for relative weights · Issue #2690 · w3c/csswg-drafts
- [css-fonts] font-weight: bolder and lighter are counter-intuitive · Issue #2764 · w3c/csswg-drafts
- [css-variables] define custom property based on parent’s (inherited) value · Issue #1962 · w3c/csswg-drafts
